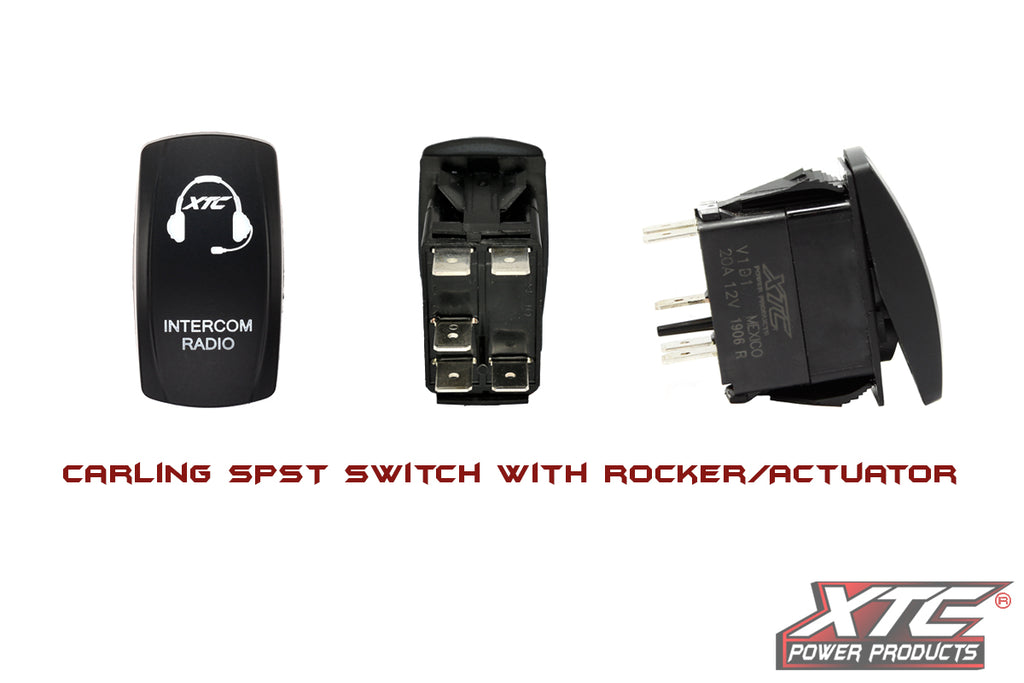

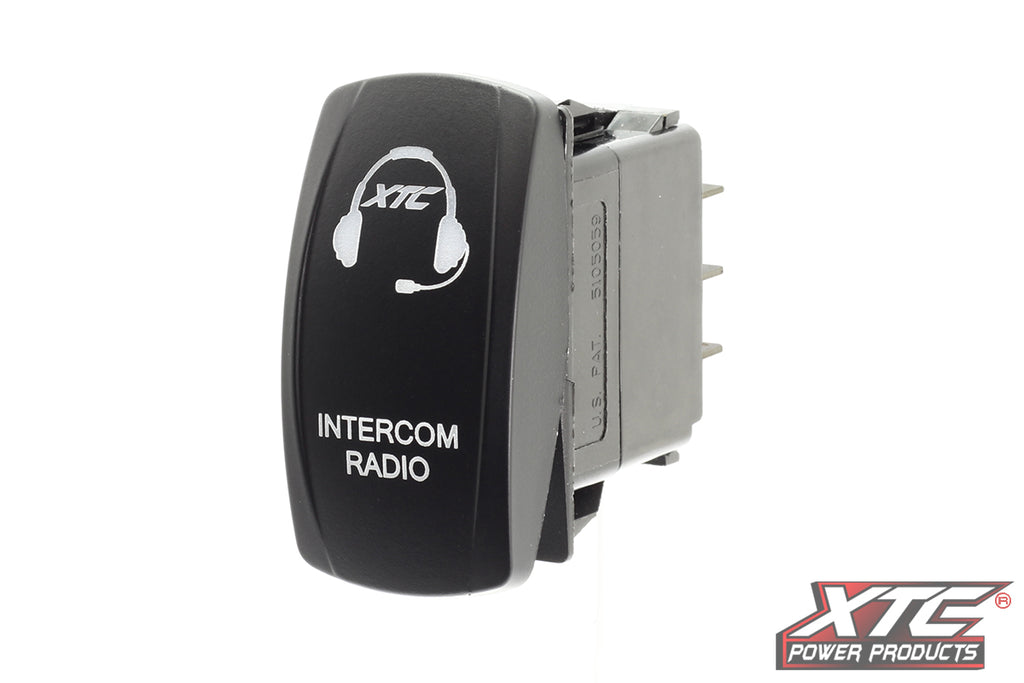

Contura V Switch Body & Actuator w/ 5 Terminals
SPST ON-OFF Switch 20A 12V

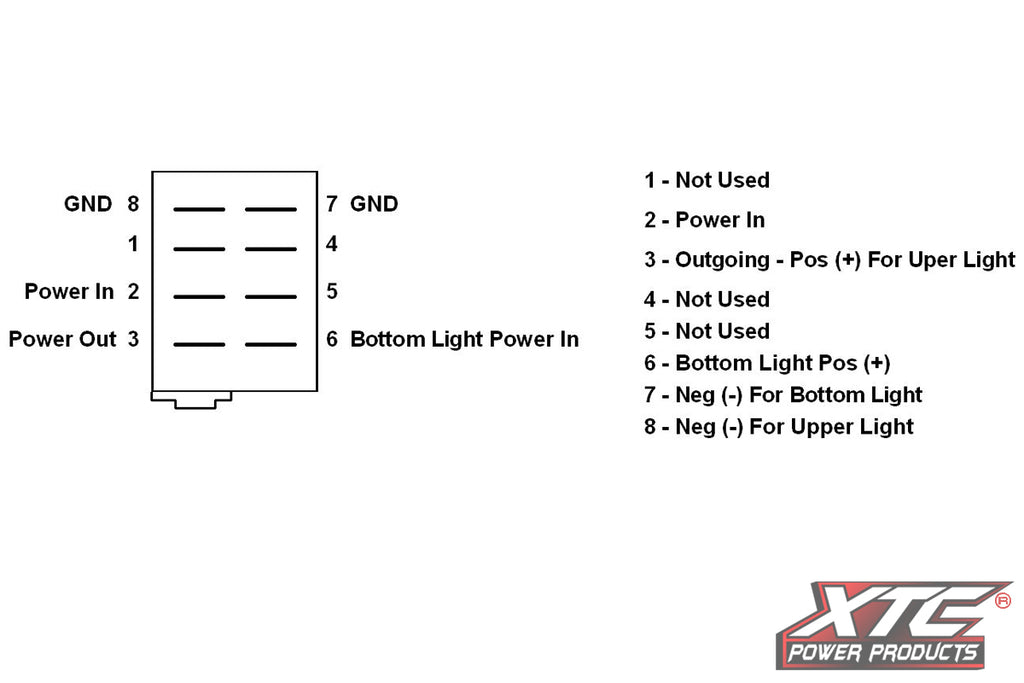

Upper LED is ON when the upper part of the rocker is pressed
Lower LED is independently wired
No rear barriers between terminals
Works with XTC Power Control Systems all models
Insulated 1/4" female quick disconnect terminals can also be used
XTC® Power Products Leads the way in UTV Wiring Solutions. XTC Gets You Wired For Fun®!
Switch-Cutout-Template
SPST ON-OFF Switch 20A 12V
Upper LED is ON when the upper part of the rocker is pressed
Lower LED is independently wired
No rear barriers between terminals
Works with XTC Power Control Systems all models
Insulated 1/4" female quick disconnect terminals can also be used
XTC® Power Products Leads the way in UTV Wiring Solutions. XTC Gets You Wired For Fun®!
Switch-Cutout-Template
