Jeep, JK Squadron Pro Spot A-Pillar Kit Baja Designs

  • Sale
  • Regular price $487.95
Shipping calculated at checkout.


Baja Designs Jeep JK A-Pillar Light Brackets for auxiliary lights. These mounts bolt on to the stock windshield mounting location. They will allow you to run Squadron Sport, Squadron Pro, XL Sport, XL Pro, XL80, and XL Racer auxiliary lights.

Baja Designs Features:

  • Satisfactions Guarantee- 30 Day Money Back Guarantee
  • Limited Lifetime Warranty- Complete Purchase Protection
  • uService- Replaceable Lenses And Optics
  • ClearView- All The Light, Right Where You Need It.
  • MoistureBlock- Waterproof, Rain Proof, Submersible
  • CopperDrive- Only LED Driven At 100 percent
  • 5000K Daylight- Less Driver Fatigue, Natural Color

Specifications (per light):

  • Lumens: 4,600 Utilizing 2 types of Cree LEDs
  • Wattage/Amps: 40W / 2.90A
  • Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
  • Weight: 12 ounces
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized and Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

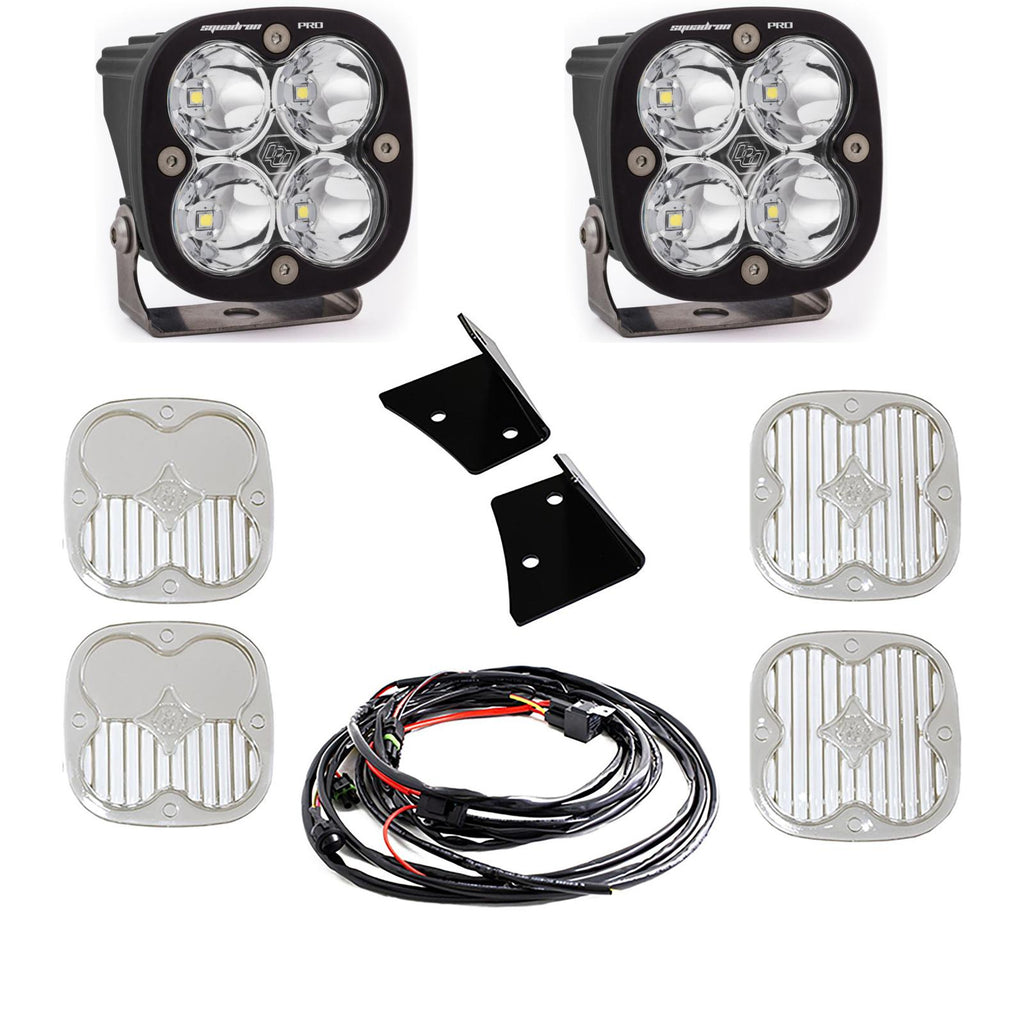

Includes:

  • x2 Jeep, JK A- Pillar Mount (Set)
  • x2 Squadron Pro, Spot LEDs
  • x2 Clear Squadron Combo Lenses
  • x2 Clear Squadron Wide Cornering Lenses
  • x1 Wiring Harness with Toggle Switch
  • Hardware

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
