Blue LED

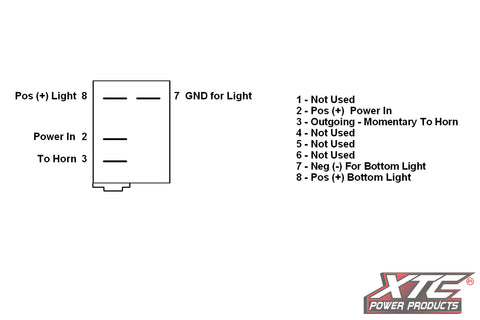

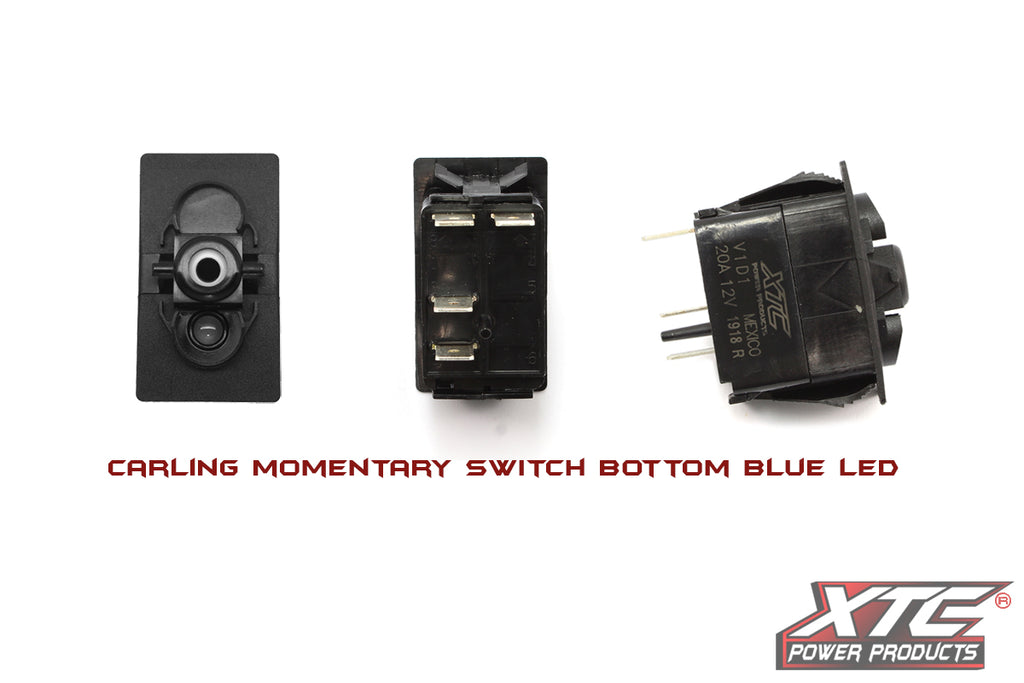

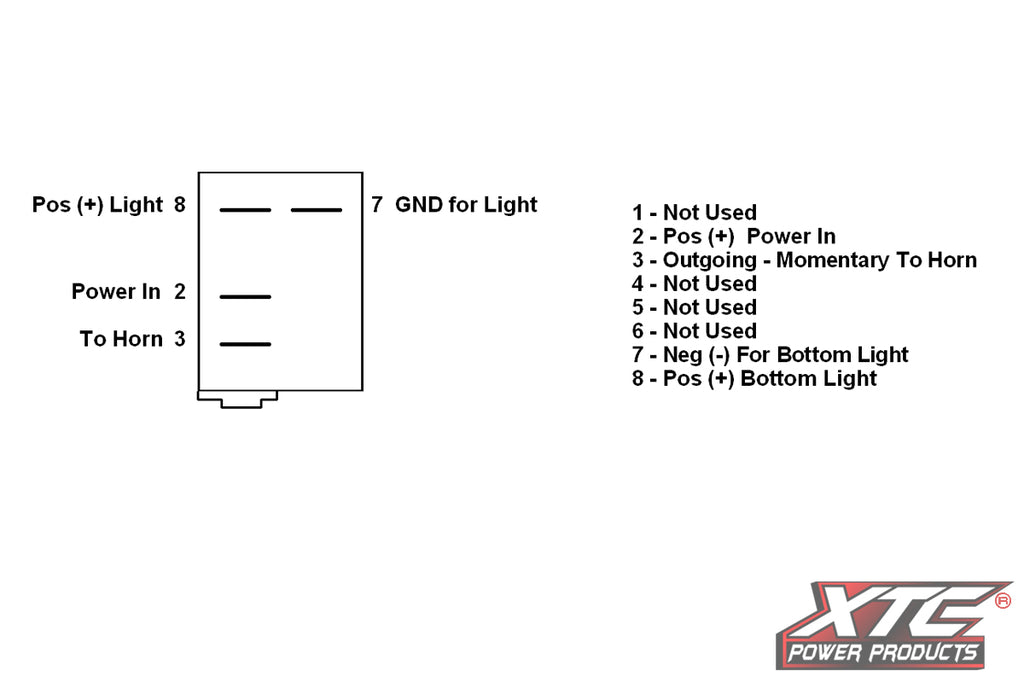

Contura V Switch Body w/ 4 Terminals
SPST Momentary (ON)/OFF Switch 20A 12V
No Upper LED
Lower Blue LED is independently wired
No rear barriers between terminals
Works with XTC Power Control Systems all models
Insulated 1/4" female quick disconnect terminals can also be used
XTC Rocker Switch Bodies are used with XTC Power Control Systems and Accessory Harnesses. The Switch Bodies include a brightly lit LED designed to shine through a custom laser-cut rocker switch cover, sold separately. There are multiple LED color options to choose from, including red/red, red/blue, blue/blue, amber/amber, and none lit. The Switch Bodies are a standard rocker switch cut-out size that comes integrated on most UTV's OE Dash. Although the Switch body is rated for 20 Amps of current, it should be used with a relay whenever the load exceeds 15 Amps to prolong the switch's life.
Switch-Cutout-Template
Contura V Switch Body w/ 4 Terminals
SPST Momentary (ON)/OFF Switch 20A 12V
No Upper LED
Lower Blue LED is independently wired
No rear barriers between terminals
Works with XTC Power Control Systems all models
Insulated 1/4" female quick disconnect terminals can also be used
XTC Rocker Switch Bodies are used with XTC Power Control Systems and Accessory Harnesses. The Switch Bodies include a brightly lit LED designed to shine through a custom laser-cut rocker switch cover, sold separately. There are multiple LED color options to choose from, including red/red, red/blue, blue/blue, amber/amber, and none lit. The Switch Bodies are a standard rocker switch cut-out size that comes integrated on most UTV's OE Dash. Although the Switch body is rated for 20 Amps of current, it should be used with a relay whenever the load exceeds 15 Amps to prolong the switch's life.
Switch-Cutout-Template
