Baja Designs OnX6+, 10" Driving/Combo LED Light Bar 451003

  • Sale
  • Regular price $429.95
Shipping calculated at checkout.


Description:

At an impressive 12,460 lumens, the brightest just got up to 69% brighter than our previous generation.  The OnX6 + LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6 + LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.





This bar is equipped with BMT – Battery Management Technology

-Elimination Of Flickering at Low Voltage

-Added Protection to Vehicle Wiring and Systems

-Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens:  (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A

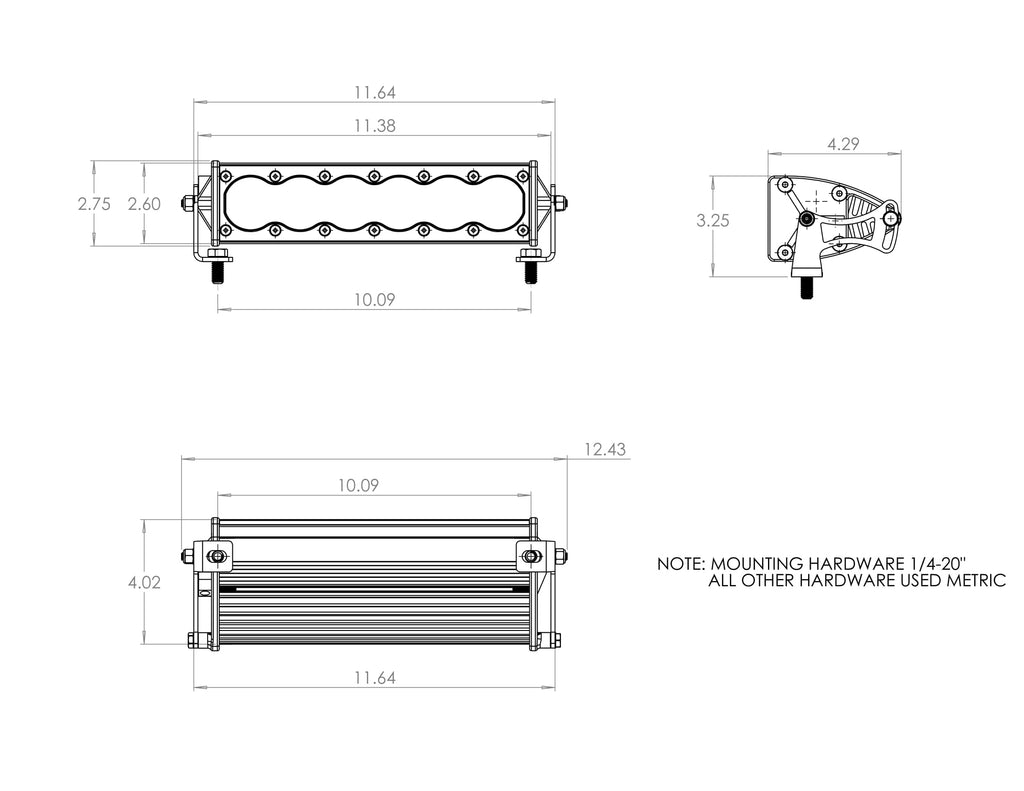

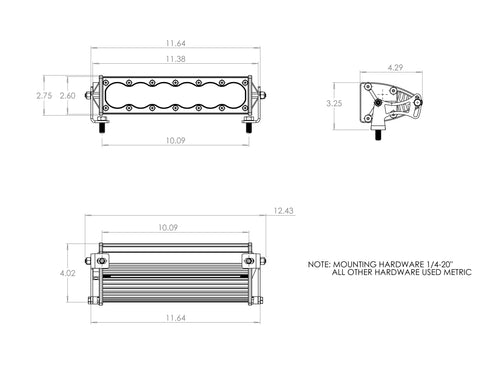

Dimensions: 10" x 4.29" x 2.69"
Weight: 4.25 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)


Please note that this light does NOT include a harness and the applicable harness to this light is 640119




Includes:

  • OnX6+ 10" LED Light Bar

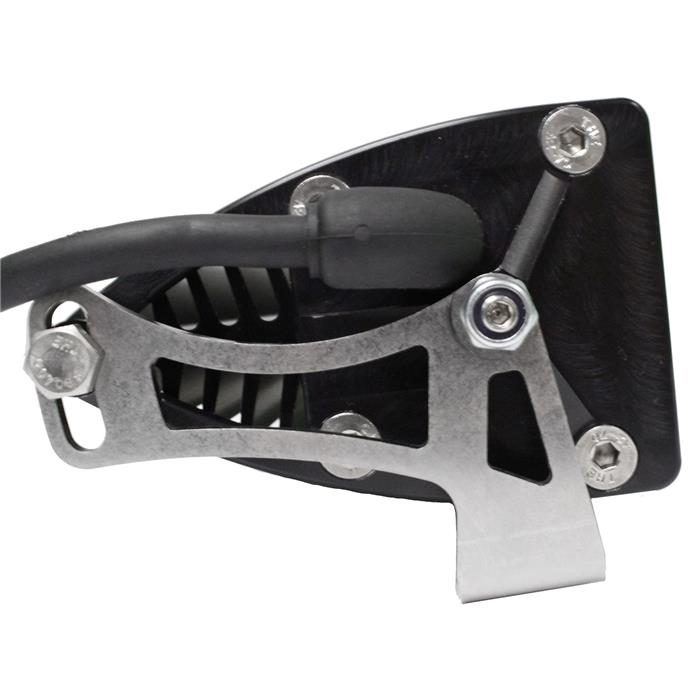

  • Mounting Brackets
  • Hi-Low Dongle



Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Racer Edition Spot:  A 4° beam focus for illumination WAY down the trail or road.  The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)



SKU: 451003

Specifications

Product Type OnX6+ 10 Inch LED Light Bar
Description Straight; Driving/Combo; Clear
Beam Pattern Driving/Combo
Lens Color Clear
Lighting Modes High Beam/Low Beam
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology LED
Lighting Quantity 6
Brightness (Lumens) 12,460 (High); 9,230 (Low)
Wattage (W) 108 (High); 80 (Low)
Amperage Rating (A) 8.4 (High); 5.7 (Low)
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Description Mounting Brackets
Mounting Hardware Material Stainless Steel
Wiring Harness Included No
Wiring Harness Description Hi-Low Dongle
Overvoltage Protection Built-In
Universal or Specific Universal

Dimensions

Length (in.) 10
Height (in.) 2.69
Depth (in.) 4.29
Weight (lbs.) 4.25

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
