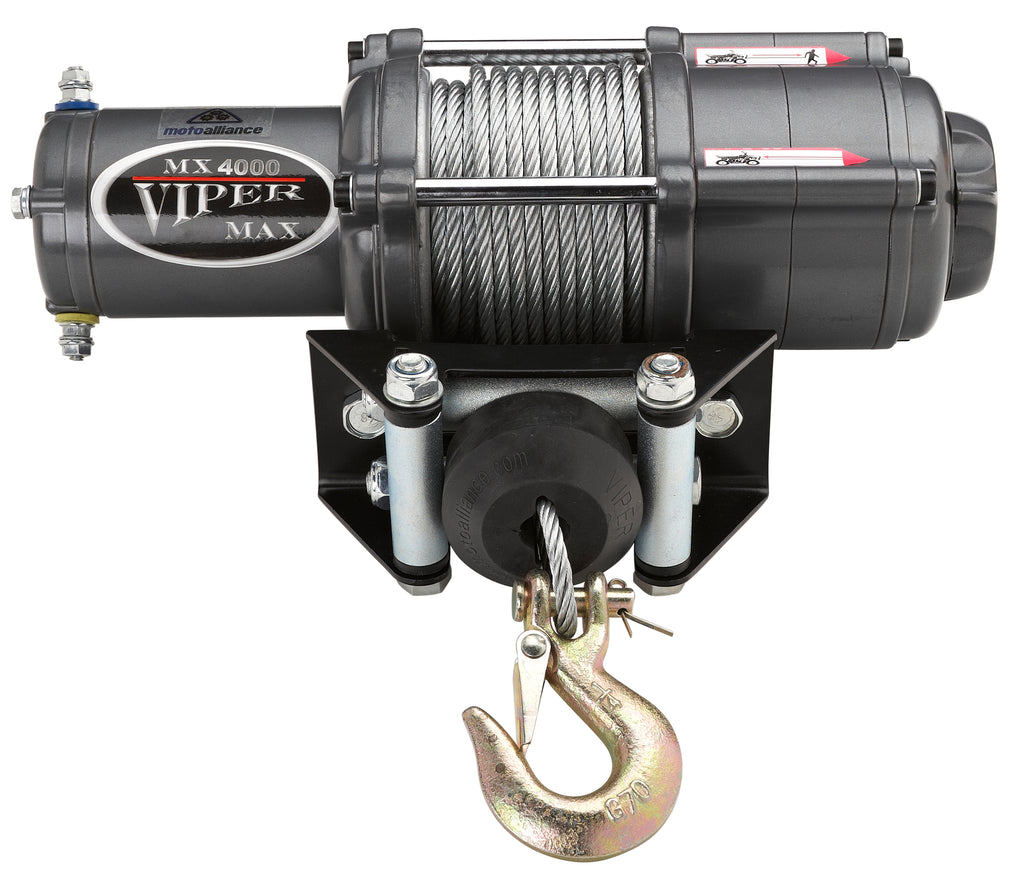

The VIPER Max ATV/UTV Winch is a durable winch for ATV, UTVs and Side by Sides. VIPER Max winches 3,500lb and larger also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in an ISO/TS 16949 quality facility with military grade raw materials, it is a great winch for snowplowing and mudding with ATVs, UTVs and SxSs. The VIPER Max is fully sealed with a composite housing and planetary metal gear train, a permanent magnet motor, an automatic brake, and stainless-steel hardware.
Features:
Kit Contents:
Specs
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS.
Features:
- • IP67 Waterproof Rating on winches 3,500-6,000lbs
- • Metal gears
- • Automatic brakes
- • Waterproof Switches
- • Limited Lifetime Warranty (winch) / Rope (6 months)
Kit Contents:
- • Steel Cable or Choose to Upgrade to Synthetic Rope (rope includes 6 month warranty)
- • 2,500-4,500lb winches : 3/16″ (.476mm) x 50′ - 5,400lb breaking strength
- • 5,000lb winches : 1/4″ (.635mm) x 40′ - 8,600lb breaking strength
- • Fairlead - Roller or Aluminum Hawse based on the type of cable
- • Contactor & Wiring
- • 9 ft. Cabled Remote Switch
- • Rocker Handlebar Switch
- • Clevis Hook
- • Rubber Line Stopper
- • Hand Saver Strap
- • Universal Fairlead Mount Plate (see note below)
- • Installation Hardware and Instructions
Specs
- • Cable - Steel or BLACK Dyneema
- • Motor - 12V DC, Sealed permanent magnet
- • Gearing / Gear Ratio - 3-Stage planetary/136:1
- • Brake - Automatic, 100% load holding
- • Clutch - Cam Activated
- • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
- • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
MOUNTS ARE NOT INCLUDED
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS.
