XL 80 A-Pillar Kit fits 21 Ford Raptor Baja Designs

  • Sale
  • Regular price $978.95
Shipping calculated at checkout.


Our Ford Raptor (21-On) A-Pillar kit is a turn-key solution for you to get performance lighting on your truck! This kit is perfect for anyone that is burning the midnight oil off-roading, traveling, or working.

This kit includes everything that you will need and doesn't require any modifications to your truck. The wiring harness is designed to work with the up-fitter switches in Ford Raptors.

Baja Designs Features:

  • Satisfactions Guarantee30 Day Money Back Guarantee
  • Limited Lifetime WarrantyComplete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K DaylightLess Driver Fatigue, Natural Color

Specifications (per light):

  • Lumens: 9,500 Utilizing 4 Cree LEDs
  • Wattage/Amps: 80W / 5.5A
  • Dimensions: 4.43 Inch x 3.65 Inch
  • Weight: 2.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized and Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Applications:

2021 Ford Raptor

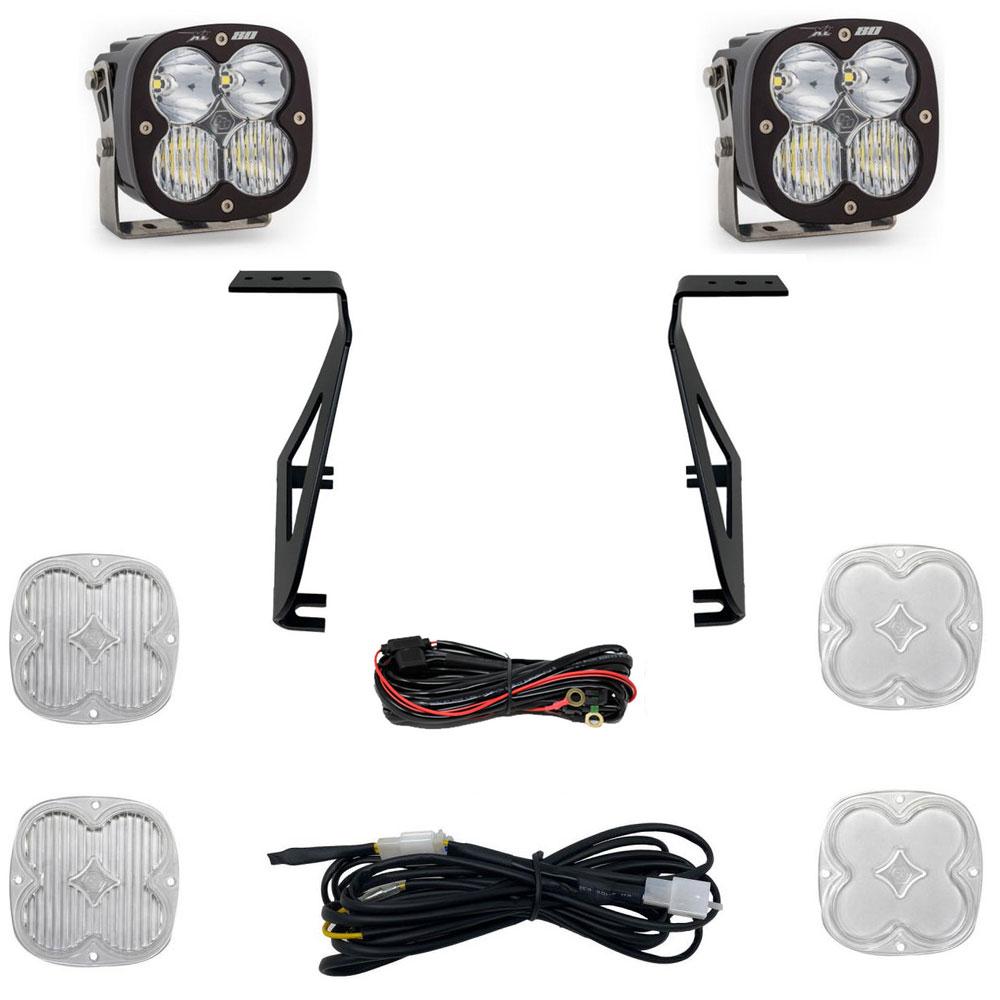

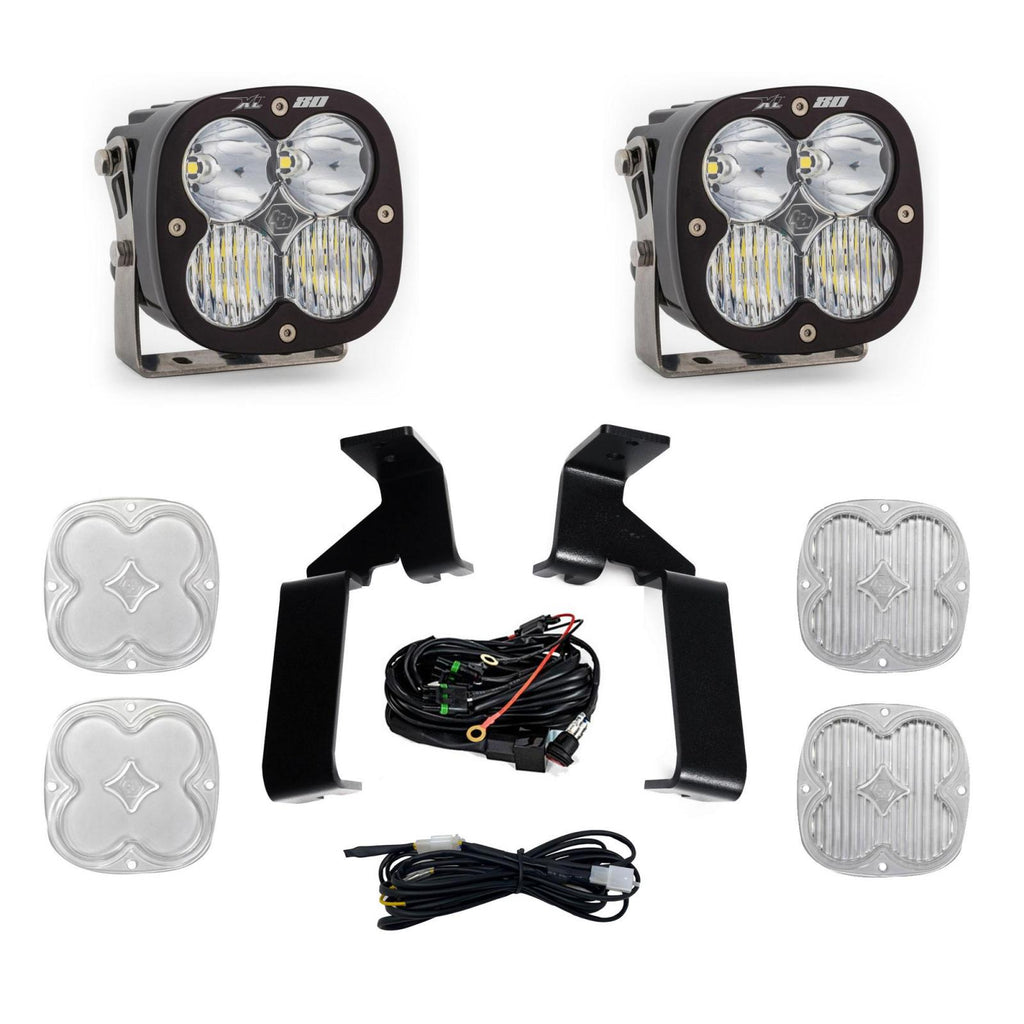

Included:

x2 XL 80s in Driving Combo
x2 A-Pillar Brackets
x1 Trigger Switch Harness Lead
x2 Spot Lens
x2 Wide Cornering Lens
All necessary hardware

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
