Polaris RZR / XP 1000 XP Turbo (2017-2020) / Maximum Ground Clearance A Arm Kit / Forward Camber Adjustable / by Zbroz

  • Sale
  • Regular price $699.00
Shipping calculated at checkout.

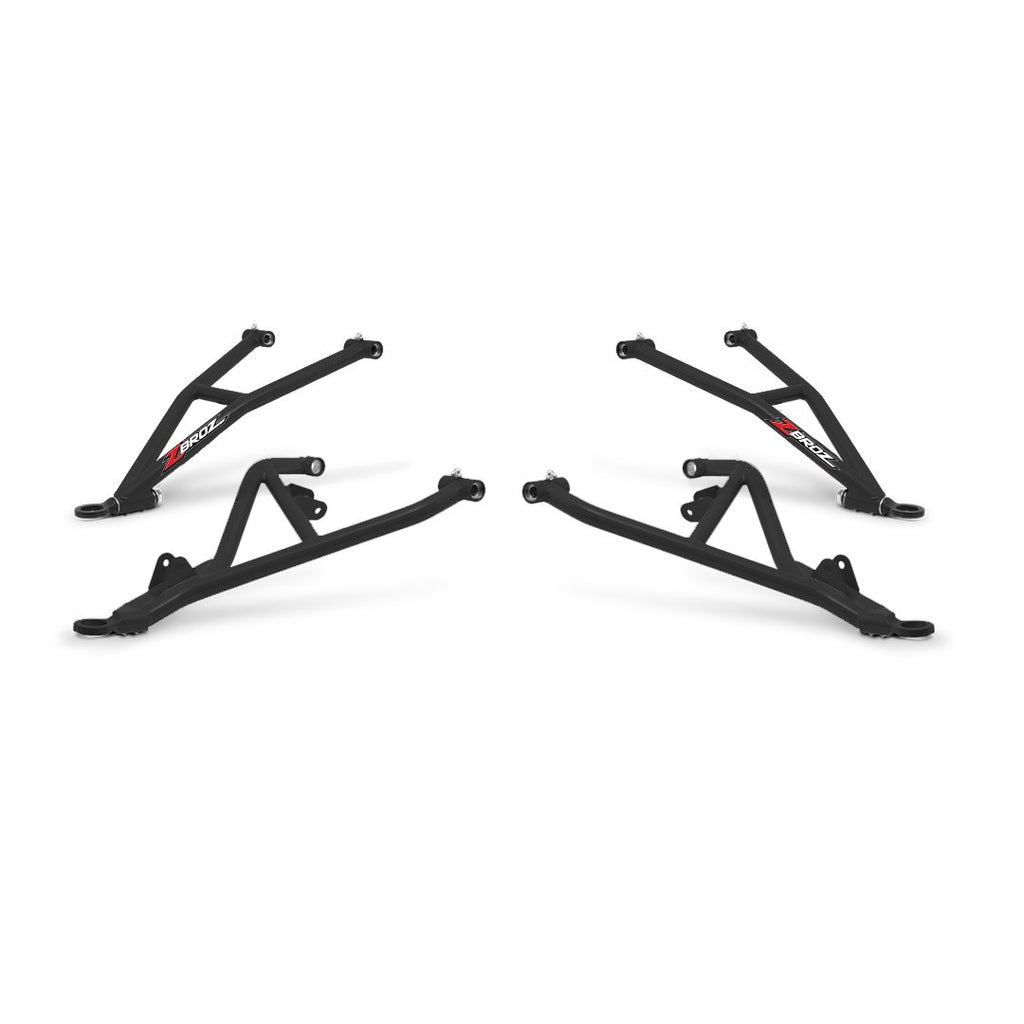

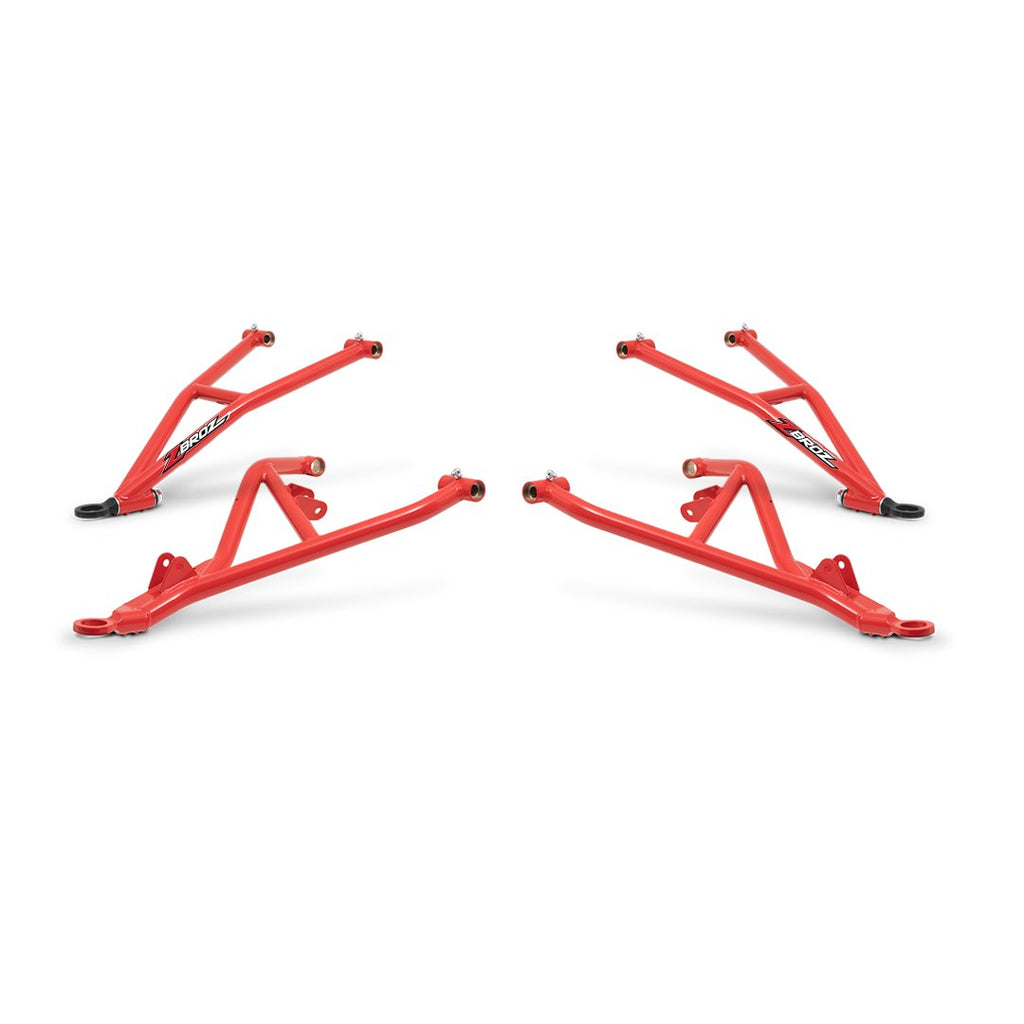

This Zbroz A Arm Kit is built from 1.125" Diameter DOM steel tube to take on any mountain trail, rock crawling and desert/dune rally action.  All joints are precision Tig welded at every connection and crossbar point to ensure strength and quality.  All pivot points have pre-installed Brass Bushings and grease zerks to last longer than stock with all the abuse of off road driving.

Zbroz Racing Maximum Ground Clearance design gives you the added advantage to drive over those a-arm snagging obstacles while still protecting Zbroz front axles.  Zbroz Racing was the original innovators of the Maximum Ground Clearance A-Arm design for ATVs and Snowmobile A-Arms since 2002.  We took that proven MGC design into the aftermarket UTV A-Arm industry In 2008 with Zbroz RZR 800 LT kit before other competitors.

+2" Forward Design Looking to run larger tires?  Larger tires are key for mountain trail, rock crawling and high speed desert/dune racing.  Easily fit 30" to 33" tall tires without modification or fender trimming by simply installing this A-Arm Kit.  Zbroz Racing +2 forward design extends your wheel base forward 2 inches without changing steering geometry and remaining within all OEM steering component specs.

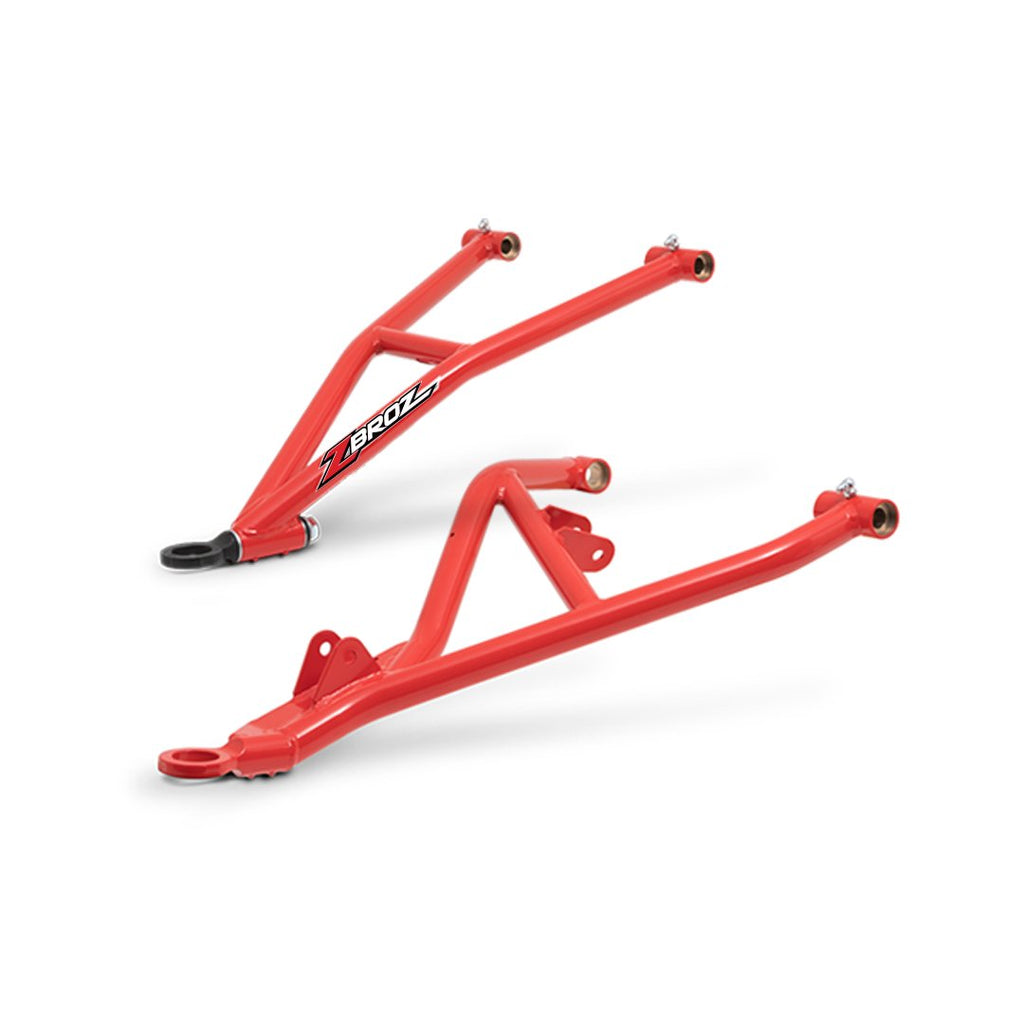

The Lower A-Arms feature Zbroz Camber Adjustable ball joint housing that allows you to fine tune the camber settings on your RZR.  Simply unbolt the ball joint housing and add or remove included camber shims.  Each shim will adjust camber by 1 degree.  All Camber Adjustable A-Arm Kits are shipped with a negative 1 degree camber.  Exactly what you need for serious mountain trail, rock crawling and desert/dune riding.  This Camber Adjustable feature allows total adjustment so that you can fine tune camber on each side.  We've experienced brand new RZR's where the frame or frame a-arm mounting points are slightly off side to side. With this Camber Adjustable A-Arm Kit, you will have complete fine camber adjusting control.

Zbroz ball joint housing specs are compatible with OEM and most aftermarket ball joints.  We offer a pre-installed ball joints option using Zbroz signature Titan Series Heavy Duty Ball Joints for the Lower A-Arms.  And Titan Series Reverse Load Heavy Duty Upper Ball Joints for the Upper A-Arms. *When installing, you will reuse the OEM Upper Pivot Caps/and Pivot Shaft, and OEM Lower Pivot Caps and OEM Lower Pivot Shafts.

Easy to install with jack or lift in your driveway or garage with basic tools.


  • Upper A-Arms with pre-installed Brass Bushings and Pivot Grease Zerks
  • Lower A-Arms with Pre-installed Brass Bushings and Pivot Grease Zerks
  • (8) Camber Shims
  • 2014+ Polaris RZR XP 1000
  • 2017+ Polaris RZR XP Turbo

Optional Ball Joints for 2017+ RZR XP 1000/Turbo Available Here

Optional Ball Joints for 2014-2016 RZR XP 1000/Turbo Available Here
